Mechanical lifespan: >10 switching cycle

Climatic resistance: damp heat, constant, to DIN IEC 60068-2-78 damp heat, cyclic, to DIN IEC 60068-2-30

Ambient temperature: open:  -25/+50 °C. (min/max) enclosed:  -25/+40 °C. (min/max)

Load carrying capacity in intermittent operation, Class 12 AB: 60%/40%/25%     DF: 1.3/1.6/2 × Ie

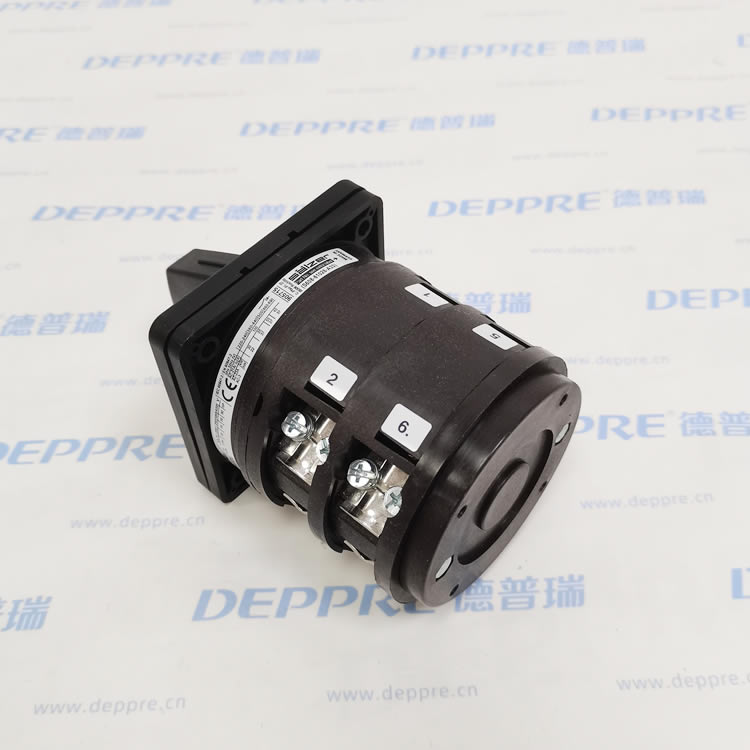

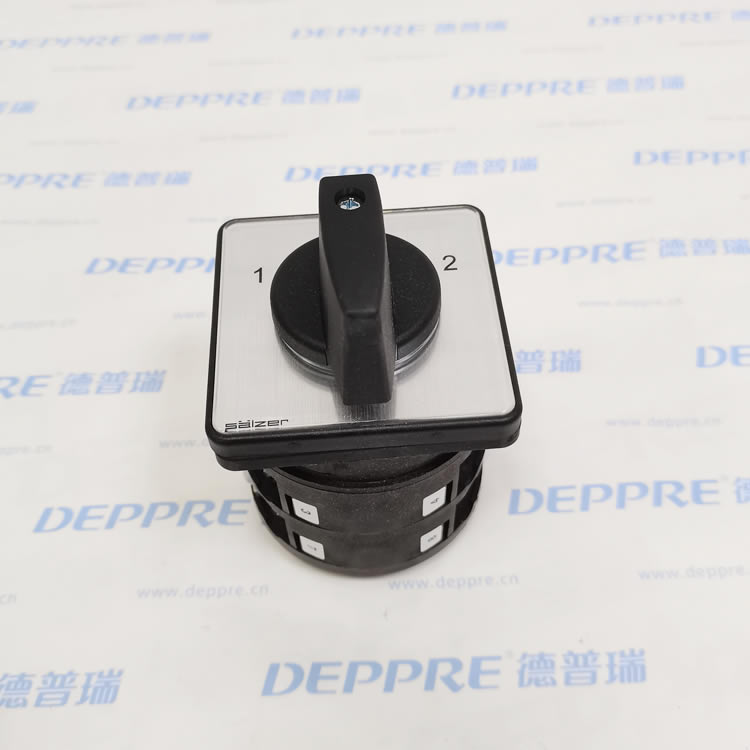

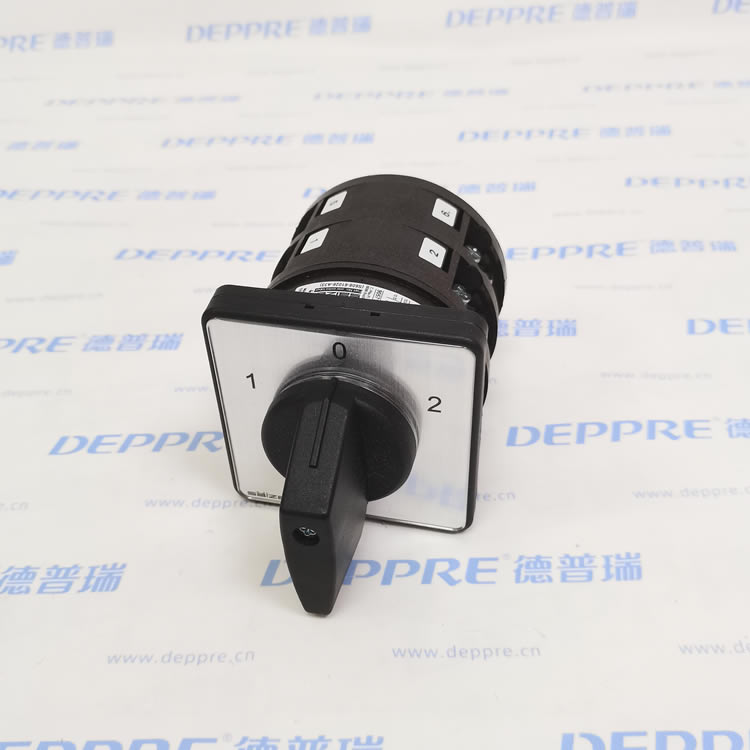

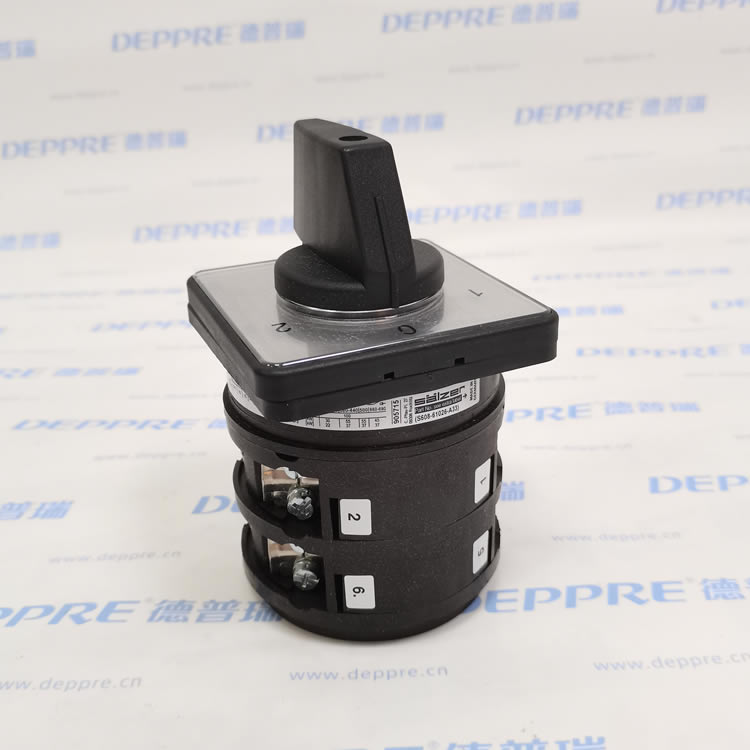

Rotary Cam Switch, Product line S608 2 pole Changeover Switch Front mounting switch Four hole mounting 68 x 68mm, M-operator module 88 x 88mm, M-handle black, Escutcheon black, Legend plate silver, switching angle 60°, 2 contact stages with 4 contacts

旋轉凸輪開關，產品系列 S608

2 極轉換開關

前安裝開關

四孔安裝 68 x 68mm，M 操作器模塊

88 x 88mm，M 手柄黑色，鎖眼黑色，銘牌

銀色，開關角度 60°，2 個觸點級，4 個觸點
